Ceramic Cross Partition Ring

Ceramic Cross Partition Ring

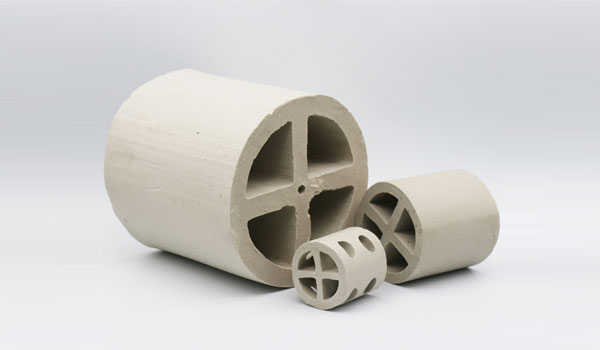

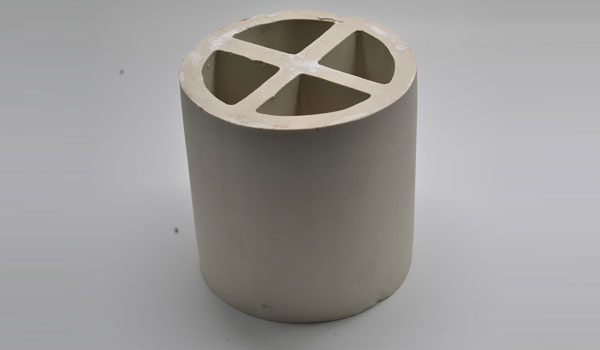

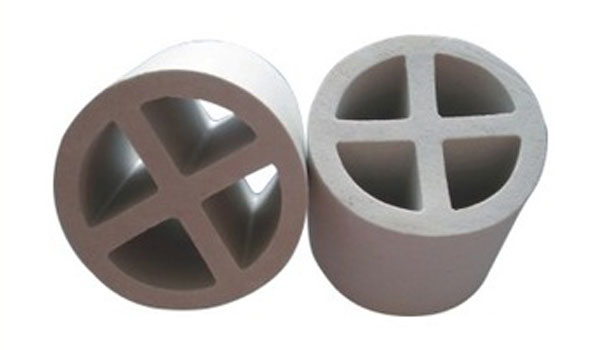

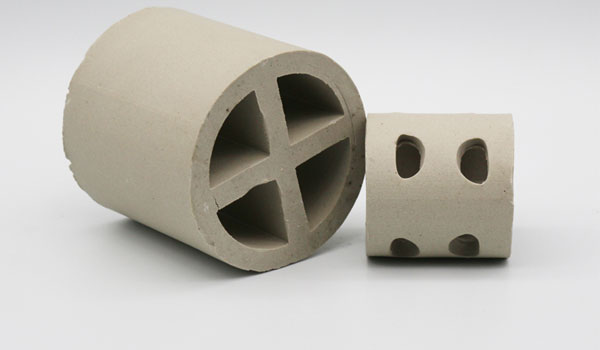

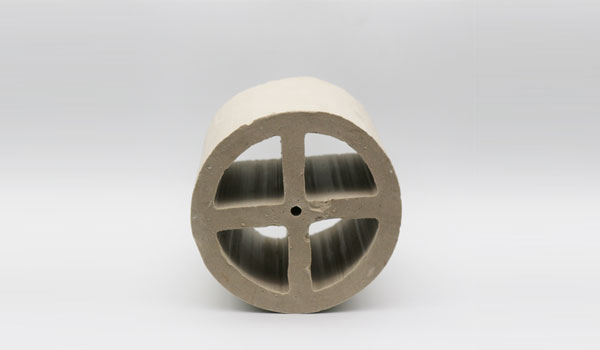

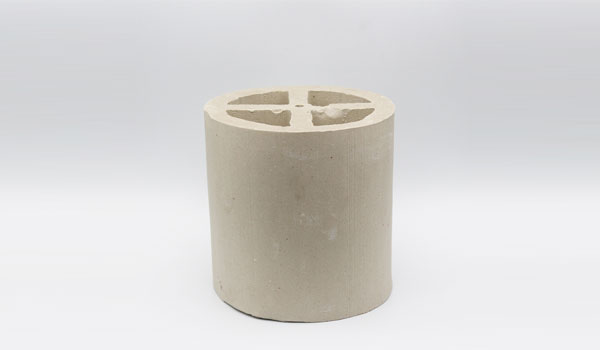

Ceramic Cross Partition Ring is a kind of random packing further improved on the basis of Raschig Ring, adding the cross clapboard inside the ring. Ceramic Cross Partition Ring increases the ring’s surface area, improving significantly the mass transfer efficiency of vapour and liquid.

Generally, Ceramic cross partition ring is required to stack orderly in the column due to its big size. Currently, ceramic cross partition rings, size between Φ80-Φ150mm, are used as the support material of another random packing at the bottom of column, which accumulation voidage is over 60%.

With the characters of high mechanical strength, high chemical stability, and excellent heat endurance, Ceramic Cross Partition Ring can resist high temperature, acid (except HF), alkali, salt and various organic solvents. Ceramic Cross Partition Ring’s widely applied in various packing towers of desiccation, absorption, cooling, washing, and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation.


Categories: ,
Get a Quote


Parameters of Ceramic Cross Partition Ring

Name Size Diameter (mm) Weight(kg/m3) Pieces(m3) Surface Area(m2/m3) Void(%)
Ceramic Cross
Partition Ring
ø50 50*40*50*5 600 6400 145 50
ø80 80*64*80*8 820 1950 120 56
ø100 100*80*100*10 850 1,000 110 53
ø120 120*96*120*12 860 370 75 55
ø150 150*120*150*15 980 295 60 58

Advantages of Ceramic Cross Partition Ring

  • The ceramic tower packing owns high chemical stability
  • High mechanical strength
  • Excellent heat endurance
