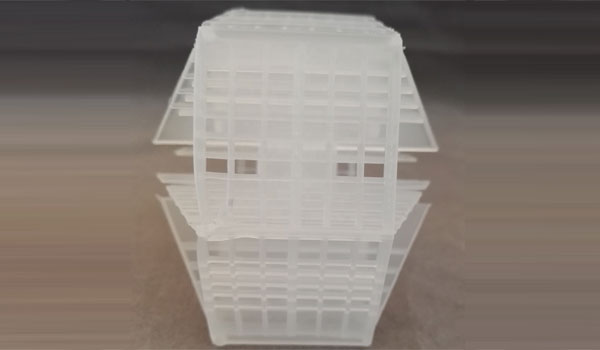

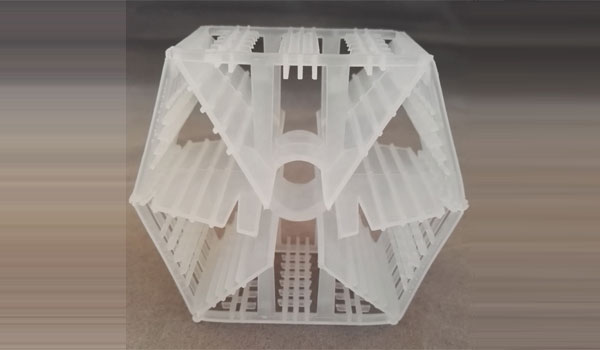

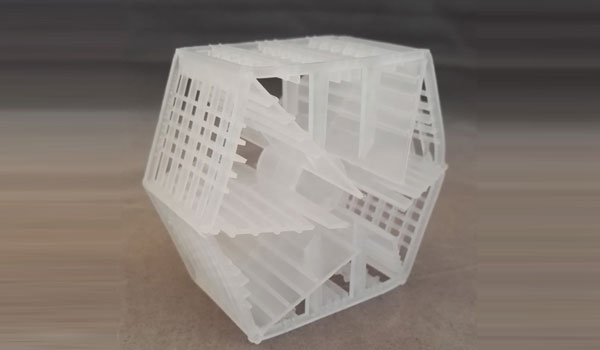

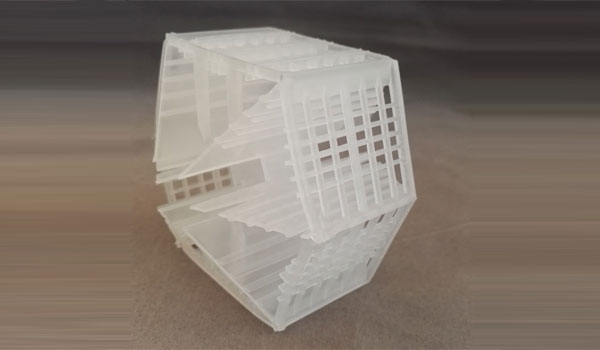

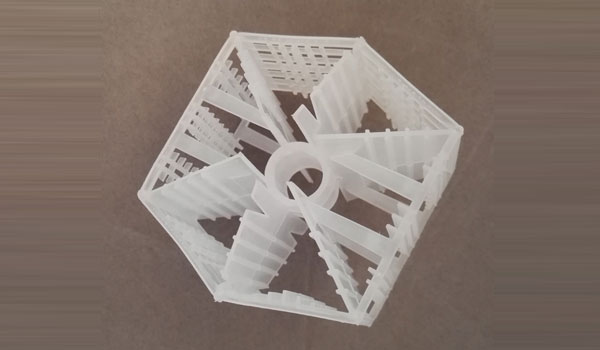

Plastic Lanpack Packing For Tower Packing is the most distinguishing feature. This design enables an extraordinarily high scrubbing efficiency while minimizing the amount of media and packing depth required. Meanwhile, Evenly spaced rod design can largely eliminate clogging. Each layer’s vertical downward rod’s distribution is not only broken large droplet, but also form many gas-liquid contacting areas. It will improve separation efficiency. Plastic Lanpack Packing is widely used in wet scrubber & gas stripping.

Categories: ,
Get a Quote


Parameters of Lanpack

Size Surface Area Void Rate Packing Number Packing Density Dry Packing Factor
mm m2/m3 % piece/m3 k/m3 m-1
60 222 89 7060 84 69
90 144 92.5 1760 56 46

Characteristics of Lanpack

  • High capacity of gas and liquid flow rates
  • Extremely low pressure drop
  • High liquid loading
  • High seperation efficiency
  • High mass transfer efficiency

Application of Lanpac Packing

Before understanding the Application of Lanpac Packing, first of all, a brief introduction to the structural advantages of Lanpac Packing, which will make it easier for us to understand its application.

Lanpac Packing’s innovative geometry design has a more reasonable packing flow structure, small resistance drop, strong processing capacity, high mass transfer effect, large load elasticity, more the packing design structure strength, longer service life, and the same material to maintain the packing does not deform the application temperature is higher, sleek shape structure and high void ratio, has excellent anti-scaling and anti-clogging characteristics, significantly improve the equivalent gas/liquid contact area. Lanpac Packing has a unique design that provides surface access to exhaust and scrubbing liquids. The product has a very high purge efficiency and has proven to be an excellent tower packing for applications with high liquid loads.

The main applications of Lanpac Packing are in the following areas:

1. Lanpac Packing is used in steel mill acid regeneration absorption systems, as well as in pickling tanks, electrolytic tanks, storage tanks, and various other special locations. Lanpac Packing is also widely used in chemical, pharmaceutical, food, and environmental protection industries, especially for deep purification of drinking water, wastewater, waste gas treatment and extraction of precious metals, solvent recovery, etc.

2. Lanpac Packing is also applied in gas extraction Packing tower for removing PCE from groundwater.

3. Lanpac Packing is used to solve the problem of methanol/water distillation for pharmaceutical manufacturers, after applying the packing, the feed rate can be doubled, the pressure drop is reduced, and the mass transfer efficiency is improved;

4. Lanpac Packing is also used in paper mills to increase the gas flow rate in the scrubber tower of the pulp mill by 40%, which can reduce clogging.
