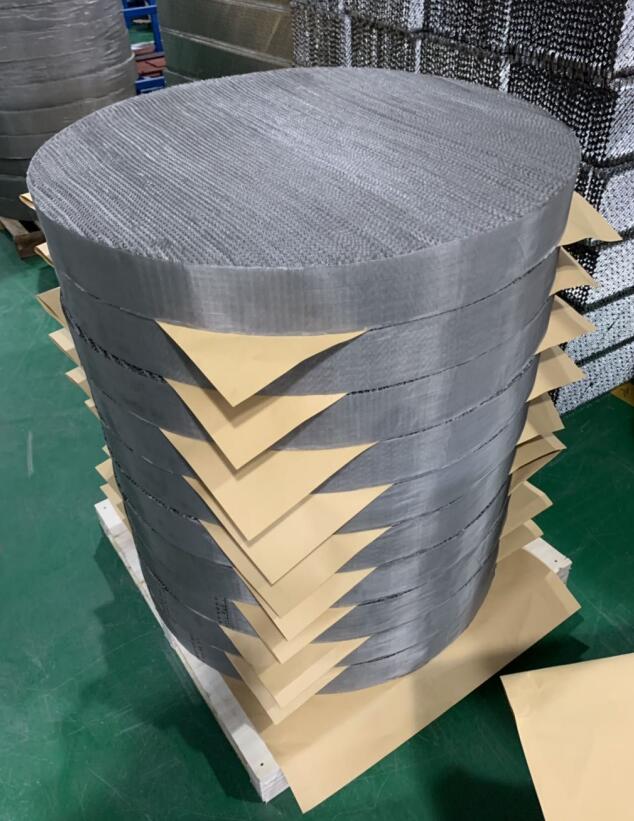

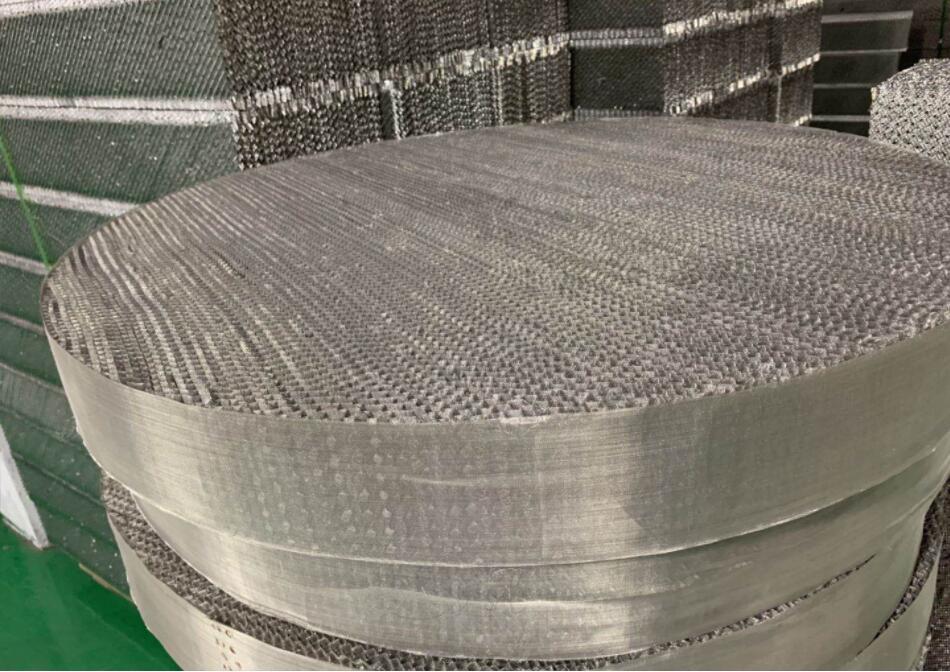

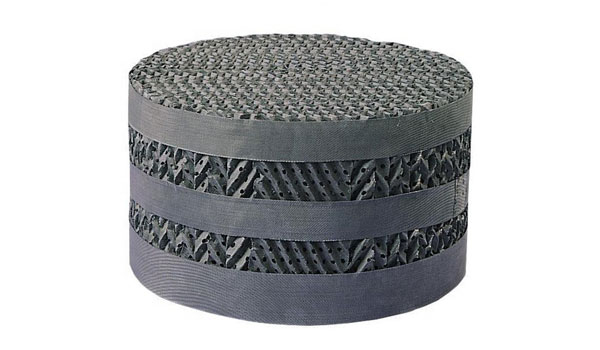

Metal Gauze Packing

Metal Gauze Packing

Metallic wire gauze packing is an important milestone of the development of clear and neat filling. This kind of filling consists of arranged web pieces pressed into corrugation. Ubiquity of corrugation is 30 or 45 and the neighbor two pieces are of opposite directions. When filling into the column, upper and lower filling trays cross bv 90. It has advantages of high effectiveness, low pressure drop and large flow rate. This product includes BX, and CY types, generally used in vacuum Distillation, normal pressure distillation and absorption processes of matters hard to separate or thermal sensitive.

Categories: ,
Get a Quote


Parameters of Metal Gauze Packing

Name Type peak height Surface area Void space Theory sheet Numbers Pressure drop Packing factor
mm m2/m3 % 1/m Mpa/m m-1
Metallic  wire gauze packing AX250 12 250 97 2.5-3.0 1.05*10 2.5-3.5
BX500 6.3 500 95 4.5-5.5 3.0*10 2
CY700 4.3 700 87 8-10 4.5*6.5*10 1.3=2.4
DY1000 3 1000 82 12-14 8.0-9.5*10 0.8-1.0
EY1500 2 1500 75 15-17 10-12*10 0.4-0.6
